The Acetylene Isolator was designed and tested to be deployed and inflated around an acetylene cylinder that has been accidentally heated and is considered unstable.
The 335 mm PVC coated and internally reinforced Waterwall comprises three walls and a roof section with a separate door section that is added once the main structure is in position. All the panels are fitted with pressure relief valves to avoid overfilling and indicating when full of water.

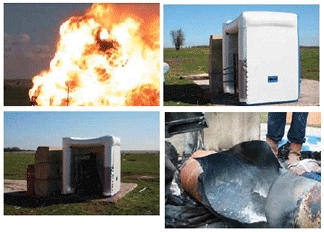

The product has been tested by the Royal College of Science test range in Wiltshire United Kingdom in 2008 when acetylene bottles were heated to destruction inside a standard Waterwall unit.
The Waterwall units can be configured to cover acetylene cylinders that are standing prone, lying horizontally or against a wall.
It is recommended that the Waterwall is positioned after the heat source has been removed using the Cintec robot that has been specially designed for the task.
Contact us for more information on the uses and specifications of Acetylene Isolators we have available.
Specifications
| External Height | External Width | External Depth | Internal Height | Internal Width | Internal Depth |
| 2035mm | 1670mm | 1470mm | 1700mm | 1000m | 800mm |
| 80” | 66” | 58” | 67” | 39” | 31” |
| Wall Thickness | Water volume | Weight empty | Weight full | Packed size in valise | |
| 335mm | 3900 litres | 44kgs | 3944kgs | ||
| 13” | 1030 US Gal | 97lbs | 8695 lbs |
