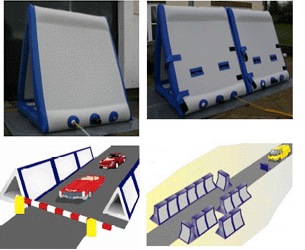

The Waterwall A-Frame range of products is PVC coated and internally reinforced with pressure relief valves to ensure that the units are not overinflated and to indicate when the walls are full of water. The ‘A’ frame Waterwall was designed to change the natural characteristics of water wanting to flow horizontally. The groundbreaking technology allows water to be shaped and controlled and makes it free-standing 3 metres high. Its form was developed and tested to absorb and redirect the blast overpressure and fragmentation of large improvised devices such as vehicle bombs. Together with other security measures the object of the A-frame is designed and tested to provide both protection and increased stand-off for valuable assets. The A-frame can be positioned with relatively small footprints at the point of entry or at a checkpoint to provide a 3 metre high blast absorbing wall that has been tested to defeat a TNT equivalent of 250Kg (550 lbs) of high explosive.
The product is easily and quickly deployed during periods of heightened security and stored away flat pack when not in use.
Increased mechanical protection can be added using ballistic nylons to the outer walls which can be decorated with any logos or security messages that the client may desire.
Specifications
| External Height | External Width | External Depth | ||
| 1835mm | 1540mm | 1500mm | ||
| 72” | 60” | 59” | ||
| Wall Thickness | Water volume | Weight empty | Weight full | Packed size in valise |
| 200mm | 1400 litres | 29kgs | 1429kgs | |
| 8” | 370 US Gal | 64lbs | 3150lbs |
